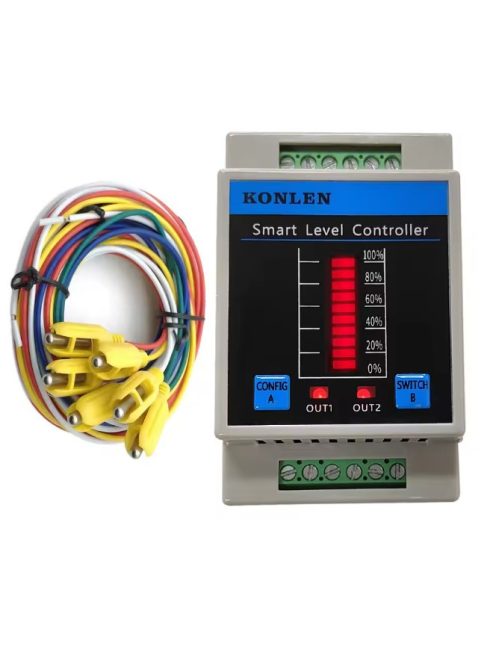

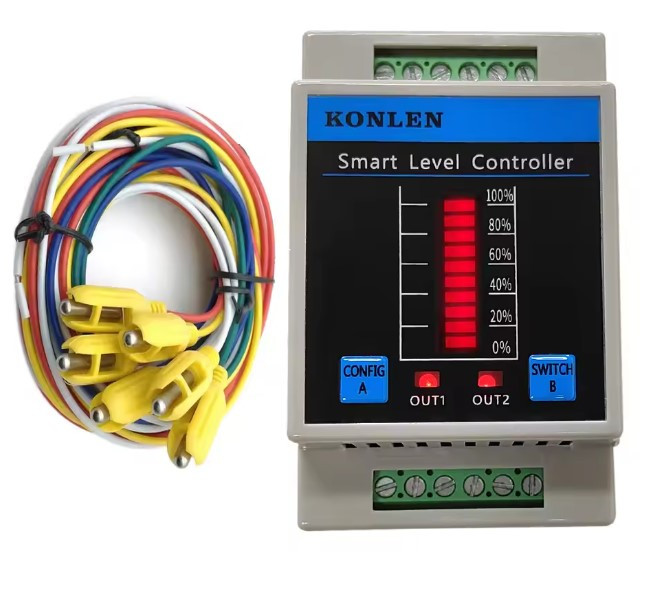

Tuya Wi‑Fi Water Level Sensor and Controller Unit
This is a Wi‑Fi-enabled water level control unit that can be monitored and configured remotely via the Tuya Smart or Smart Life app. It automatically controls a pump or heating circuit through two relay outputs and sends alerts when water levels are too low or too high. Suitable for both home and industrial applications such as pumping, water refilling, and tank management.
Key Features:

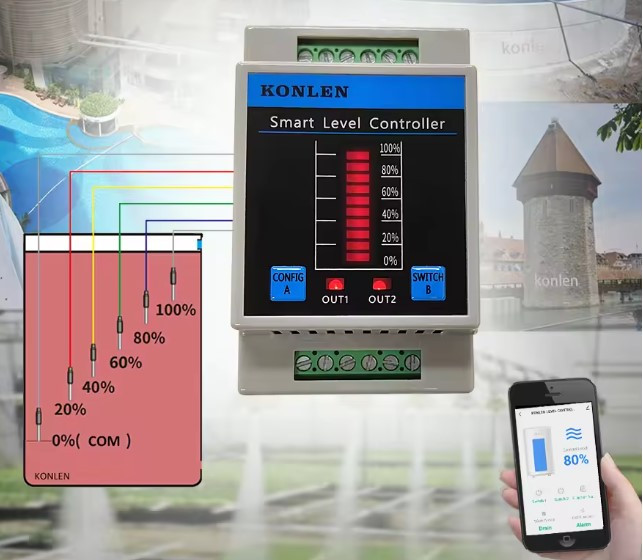

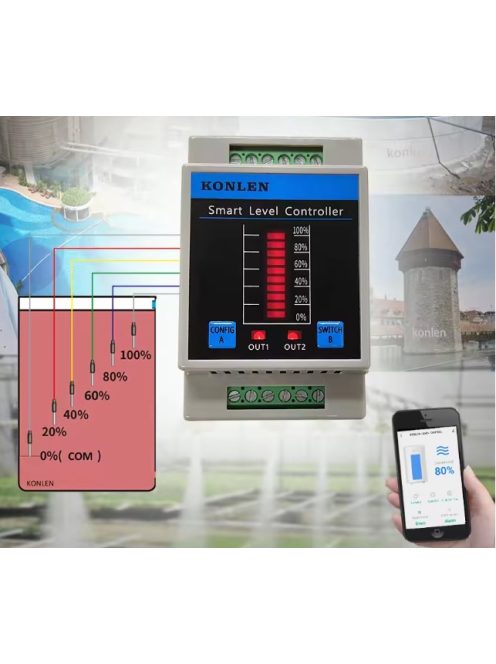

- 5-Level Water Level Measurement: 0%, 20–25%, 40–50%, 60–75%, 80–100%. The app displays the current level graphically.
- Two Relay Outputs (10 A): One can control a pump, and the other can be used for water level alarms or dry-run protection for heating circuits.
- Operating Modes:
- Filling Mode: The relay activates based on level settings, with dry-run protection.
- Draining Mode (Pumping): The relay starts/stops based on set levels; the second relay triggers an alert.
- Time-Limited Mode: Optional timer-controlled operation.
- Notifications: Push notifications are sent when high or low levels are detected. Built-in sound alarm or external siren can also be triggered.
- Wi‑Fi Connection: Works with 2.4 GHz networks; connects directly to the app without a hub.
- Power Supply: AC 90–250 V

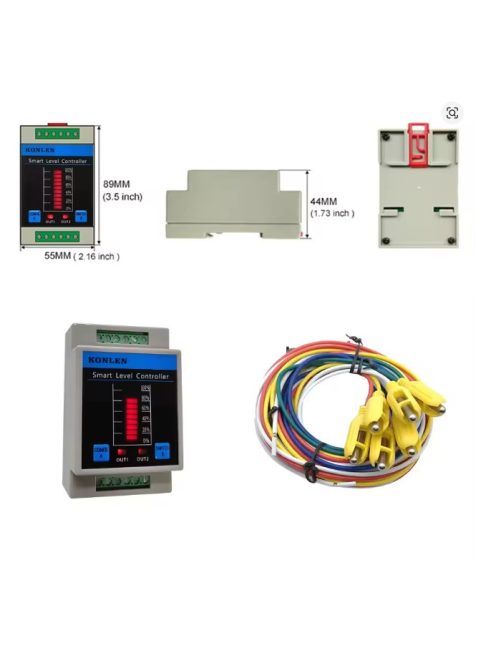

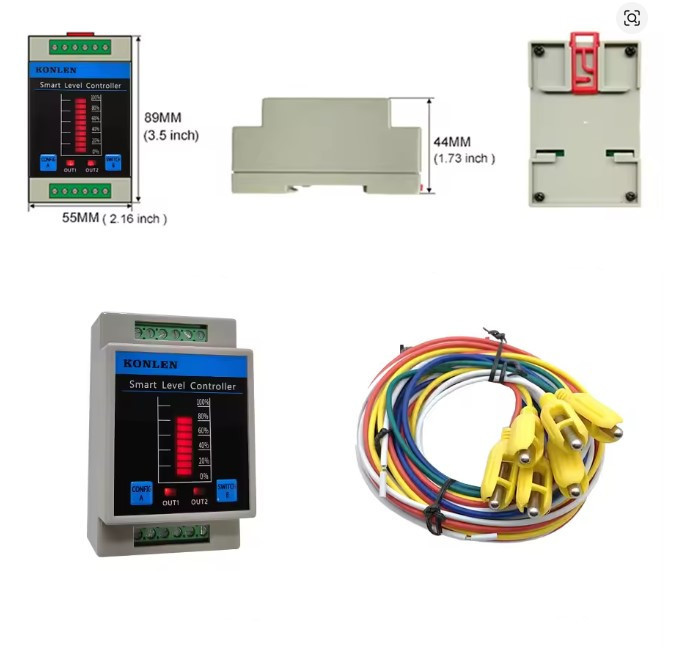

- Dimensions: 89 × 55 × 44 mm. Included sensor cables are approx. 1–3.5 m in length and can optionally be extended up to 50–80 m.
