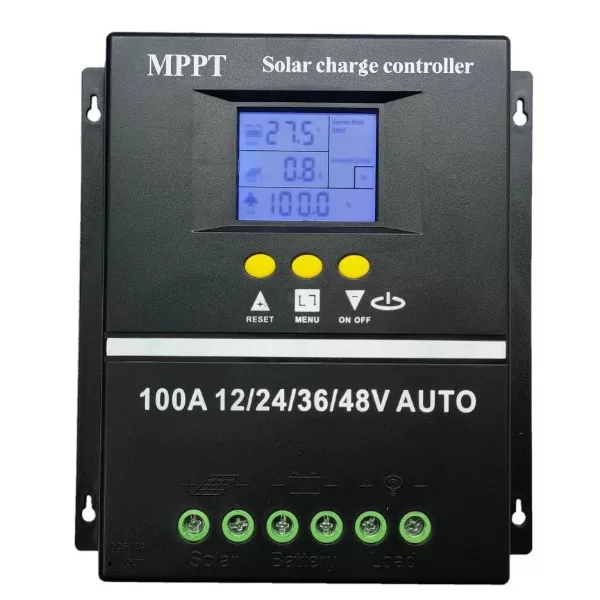

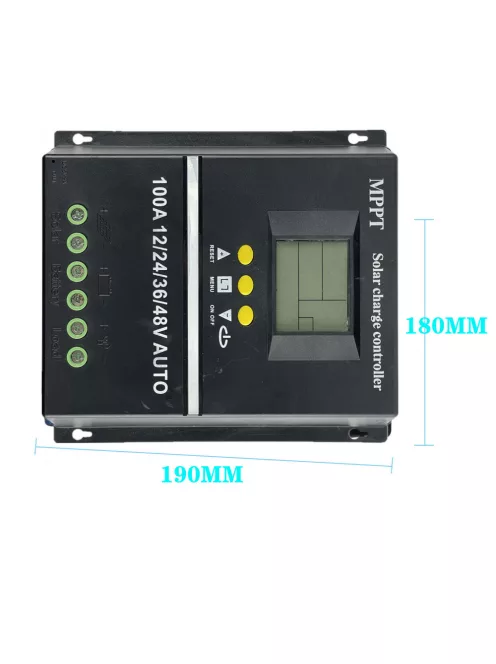

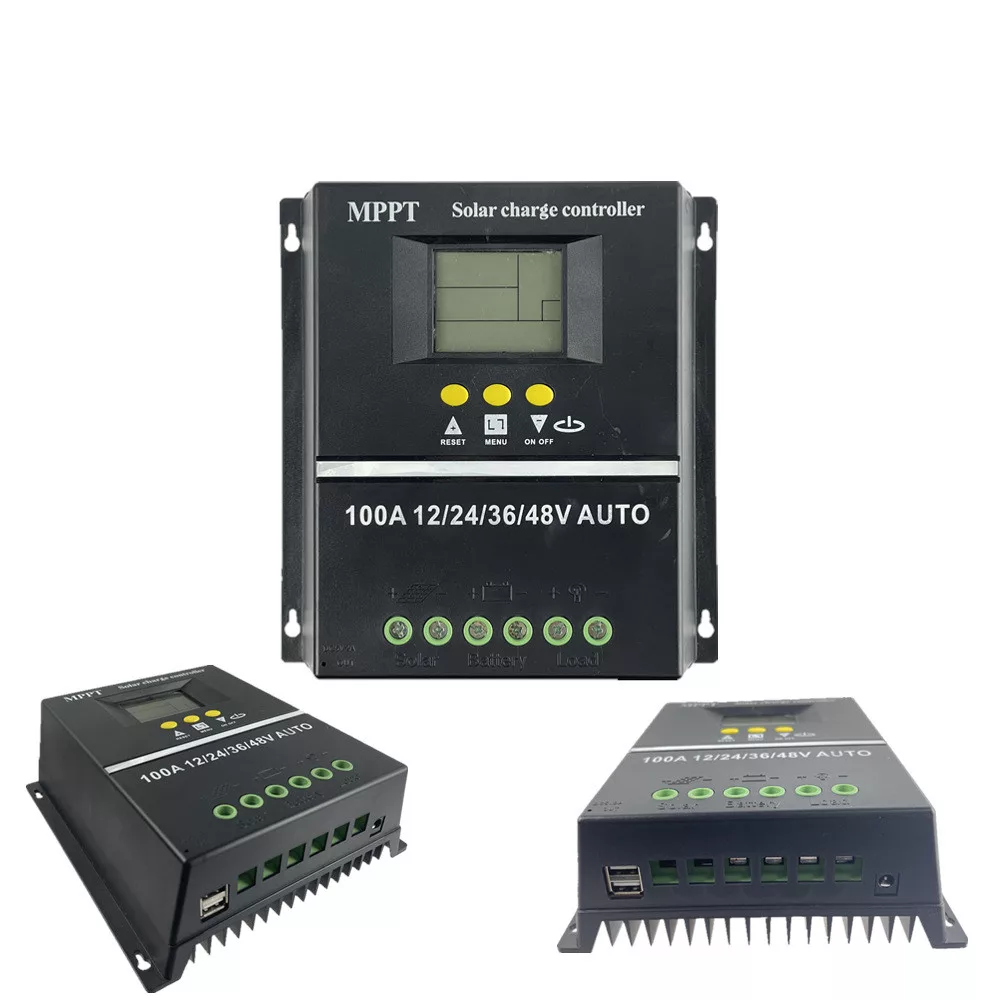

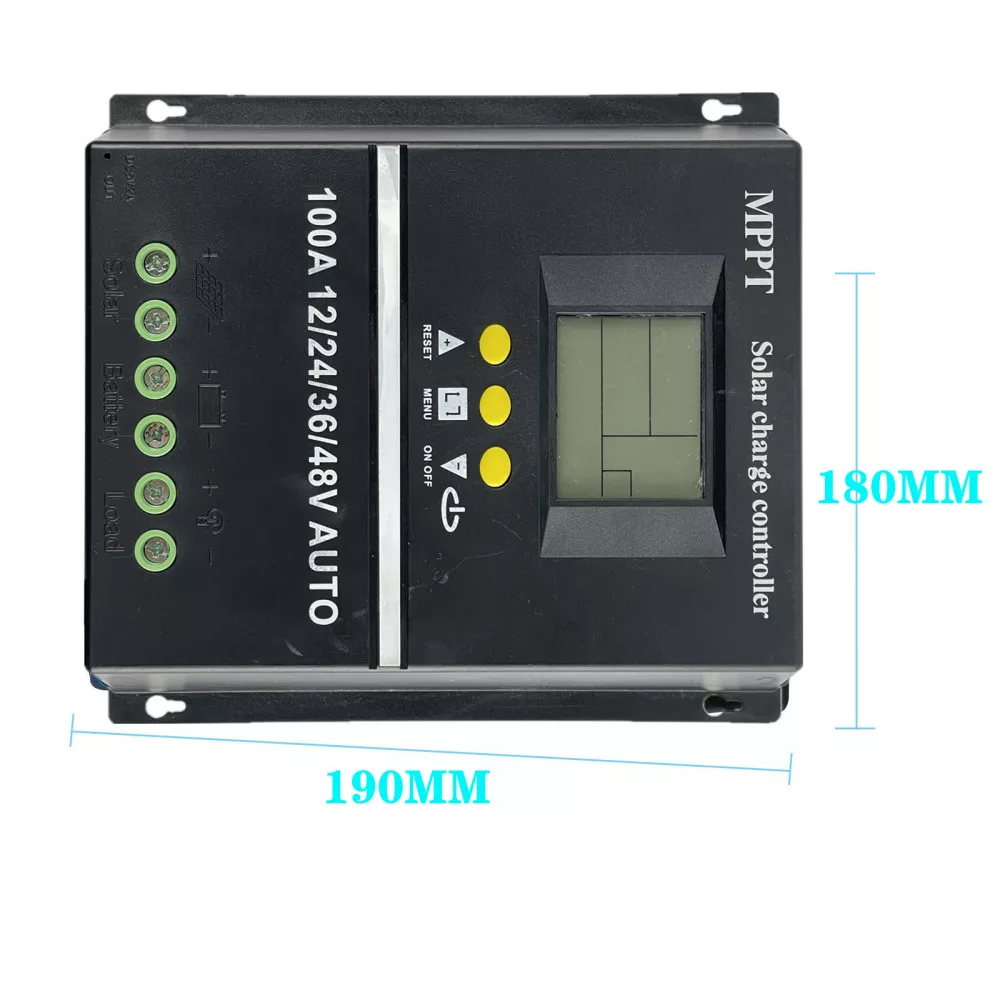

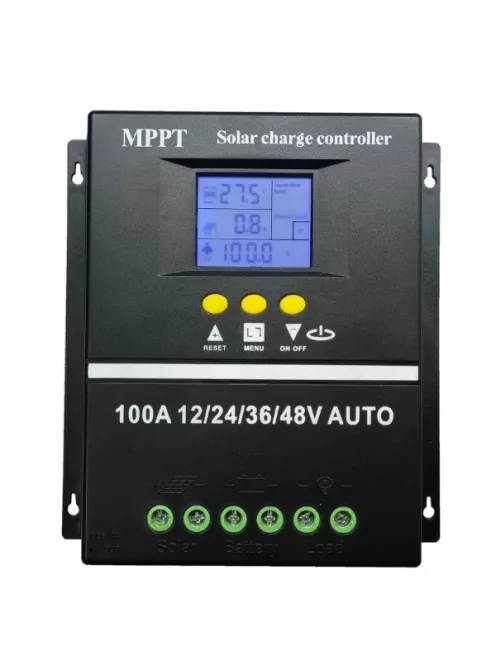

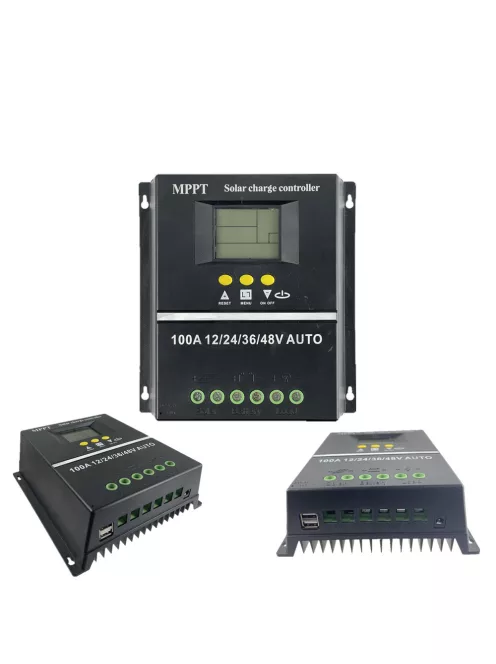

MPPT hybrid 100A solar charge controller 12V-48V
The controller is 12/24/36/48V auto, but the voltage of the photovoltaic panels used to charge different batteries is different.
Max. PV capacity:
12V battery: 1200W
24V battery: 2400W
36V battery: 3600W
48V battery: 4800W

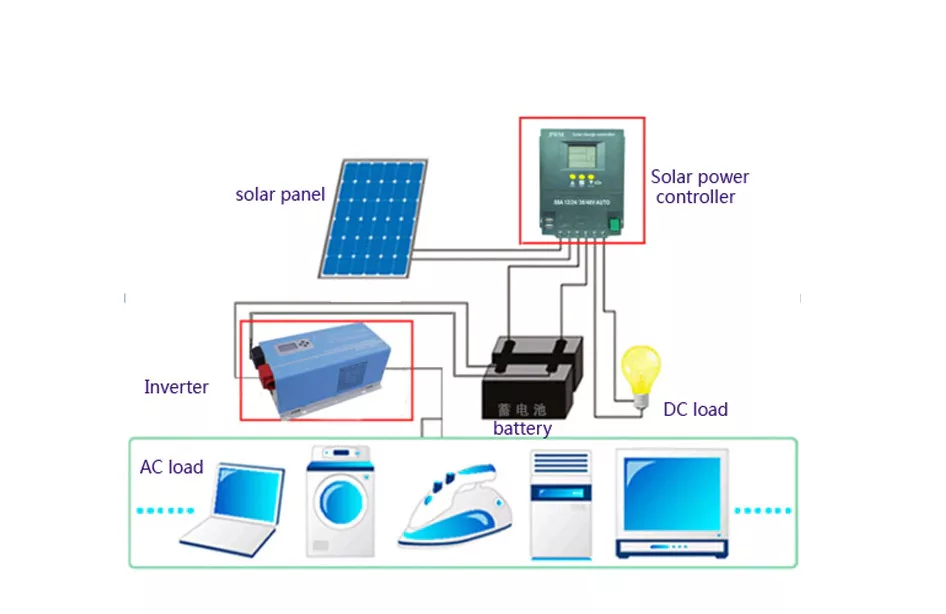

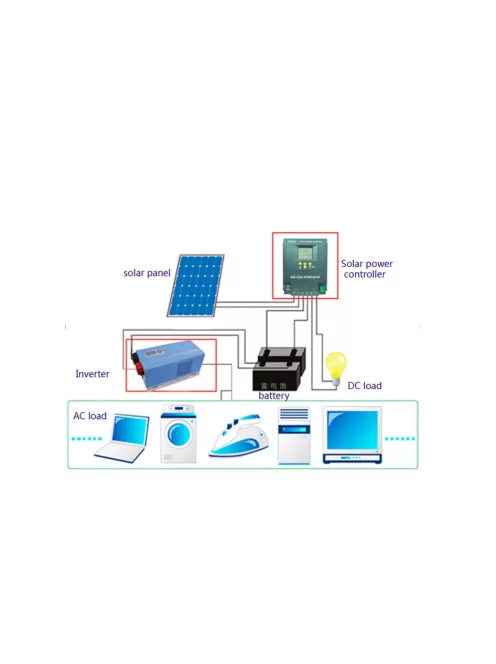

For 12V batteries, use about 18V photovoltaic panels, for 24v batteries, use about 30-37V photovoltaic panels, and for 48V batteries use 60. For photovoltaic panels around -72V, the controller wiring is connected to the battery first, and then to the photovoltaic panel. Disconnect the wire on the contrary, otherwise it will easily cause damage to the controller!
Controller type: MPPT+PWM hybrid
