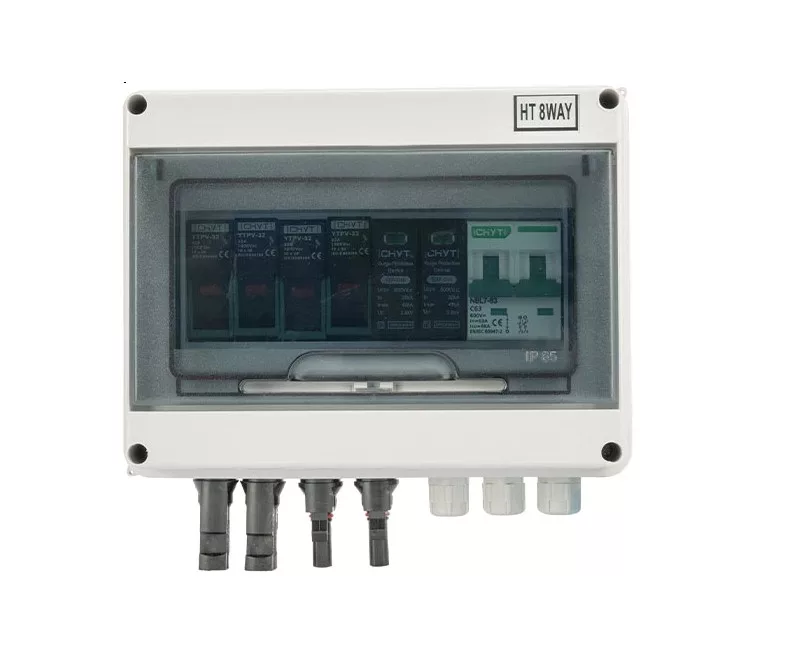

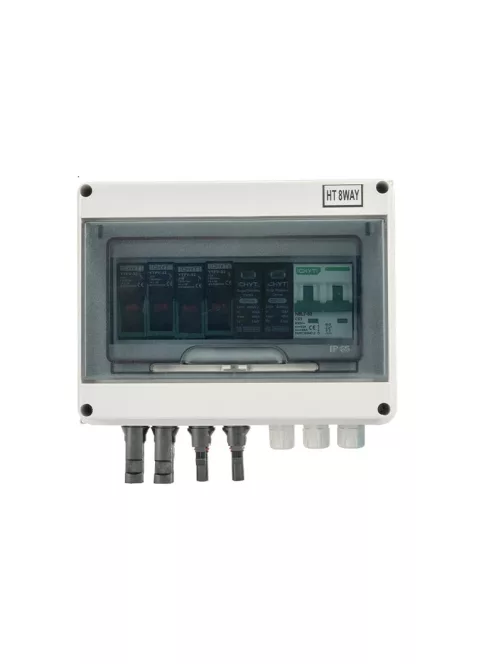

2 in 1 out PC Combiner Box 1000V

Article No.: C2I1ODC-1000
2 in 1 out PC Combiner Box 1000V
2 in 1 out PC Combiner Box 1000V
Article No.: C2I1ODC-1000
In stock
114.83

2 in 1 out PC Combiner Box

Solar PV DC Combiner Box 2 in 1 out
Rated voltage of photovoltaic system DC 1000V
Max input amp for each string
Input strings 2
Number of output strings 1
IP65 YES
Category of test II grade protection
Nominal discharge amp 20KA
Max discharge amp 40KA
Volt protection level 3.2KV
SPD Max operation voltage DC 1000V
Poles 2P
Structure characteristic Plug push module
Protection grade IP65
Output switch DC circuit breaker
Solar connector 4 in MC4
Box material PVC
Installation method Wall mounting type
Operating temperature -25℃-+60℃
Installation: indoors/outdoors Yes
Widh*high*Depth(mm) 215*210*100


1. Very high impact resistance
2. Easy machining with normal tools
3. IP65
4. Wide operation temperature range
5. Fire Resistance
6. Non-conductive
7. Good resistance to chemical corrosion
8. Light weight
9. Excellent insulating properties
10. Cost-effective material for harsh environments
