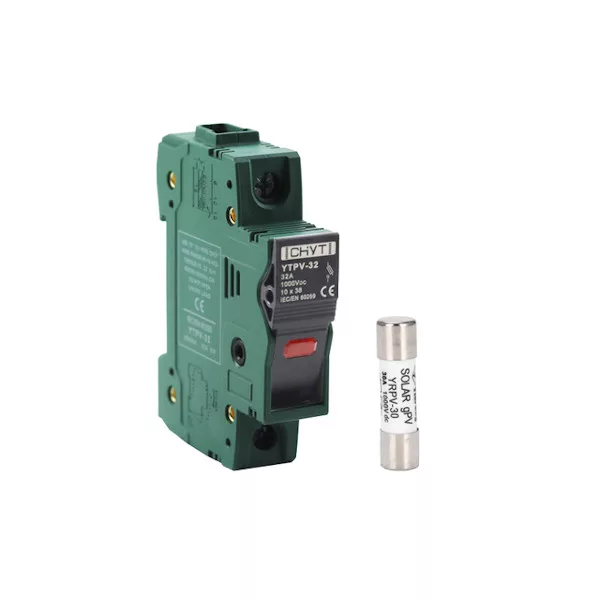

A range of fuses in a 10x38mm package specifically designer for protection and isolation of photovoltaic strings. The DC fuses are capable of interrupting low overcurrents associated with faulted PV (reverse current, multi-array fault) string arrays.
1.Rated voltage 1000VDC
2.Amps: 1A, 2A, 3A, 4A, 5A, 6A, 8A, 10A, 12A, 15A, 20A, 25A, 30A, 32A

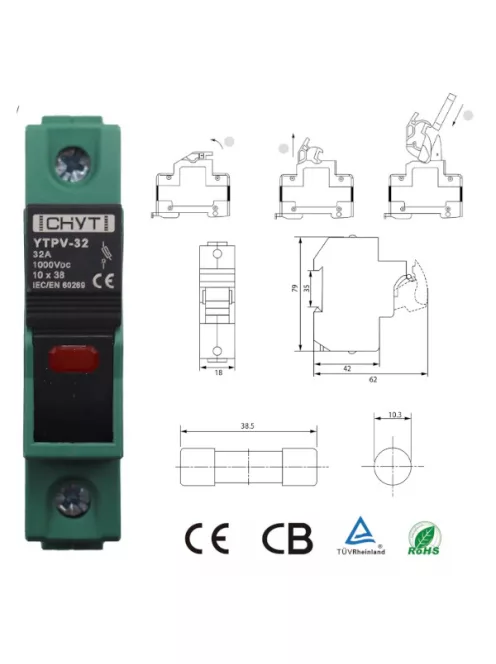

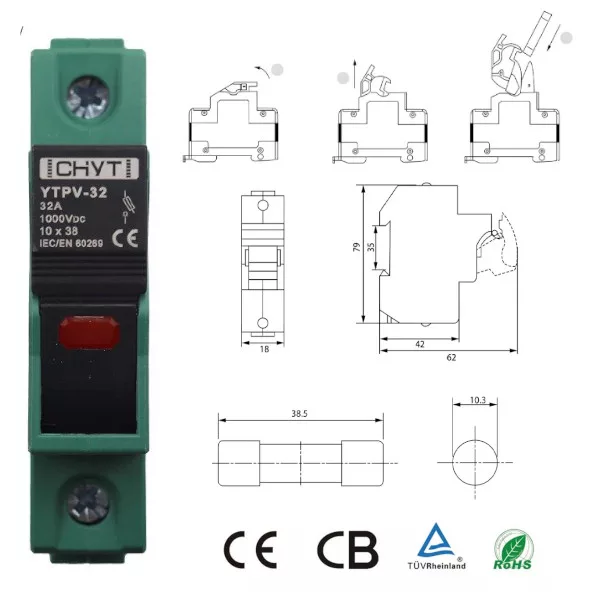

3.Fuse size: 10x38mm
4.Rated breaking capacity 20kA dc
5.Minimum interrupting rating 1.3x In
6.Time constant under 1ms
7.Standard EN/ IEC 60269-6
